Minimalist PC Case

From CAD to the production line

A custom, DFM-ready computer case engineered for precision manufacturing.
Delivered a complete set of technical drawings and specifications for a sleek, rigid, and thermally optimized PC case, ready for production.

The Engineered Build

• Production-Ready Drawings – Full 15-sheet technical package with detailed views, bends, and hardware callouts

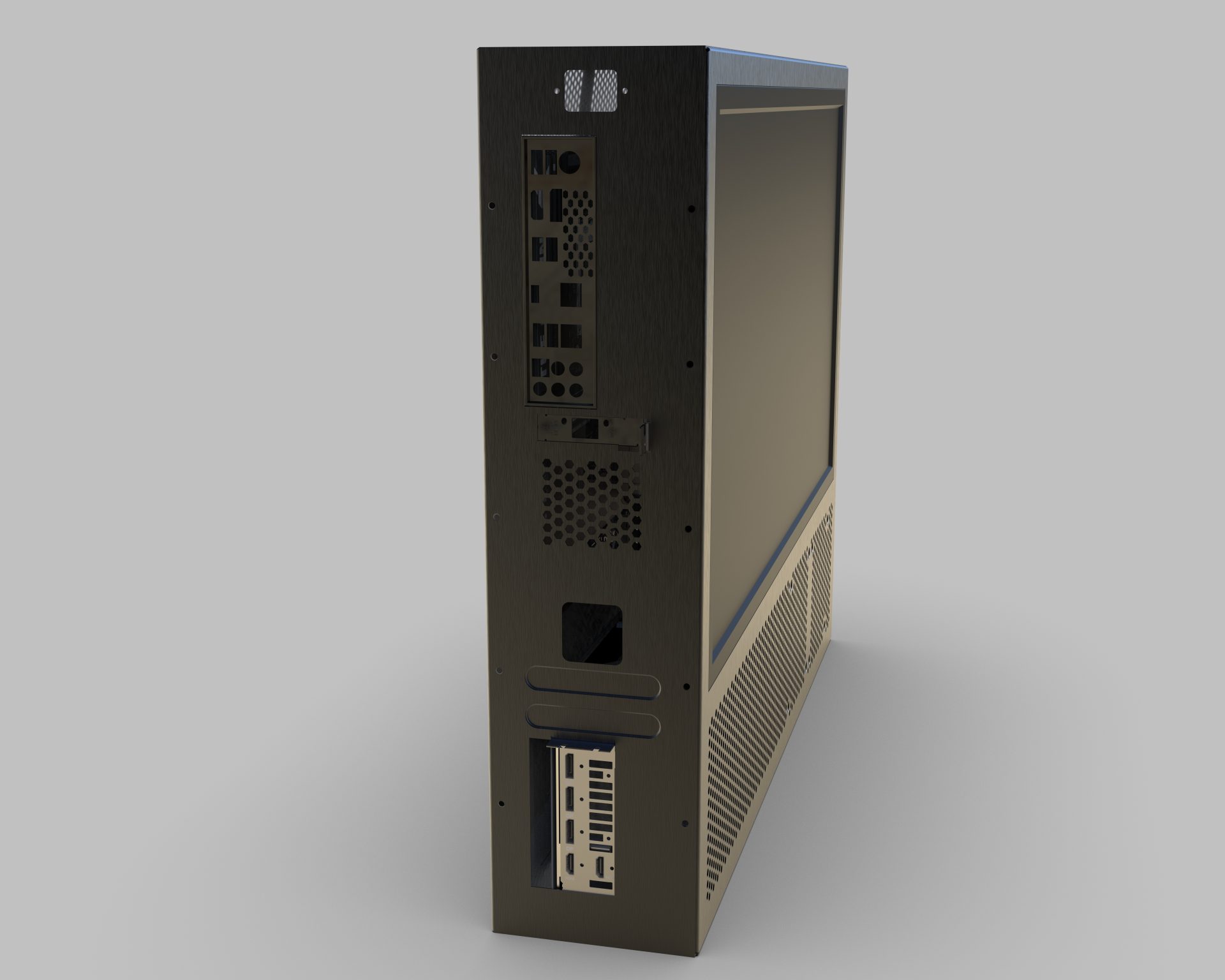

• Structural Rigidity – Strategic use of custom form tools in the SPCC sheet metal to create stiffening ribs and reinforce the back panel
• Premium Finish Specs – Comprehensive finishing specification of a 7-stage pre-treatment and powder coating (RAL 9005 Jet Black)
• Designed for Assembly – Complete Bill of Materials (BOM) with specified standoffs and hardware for error-free assembly

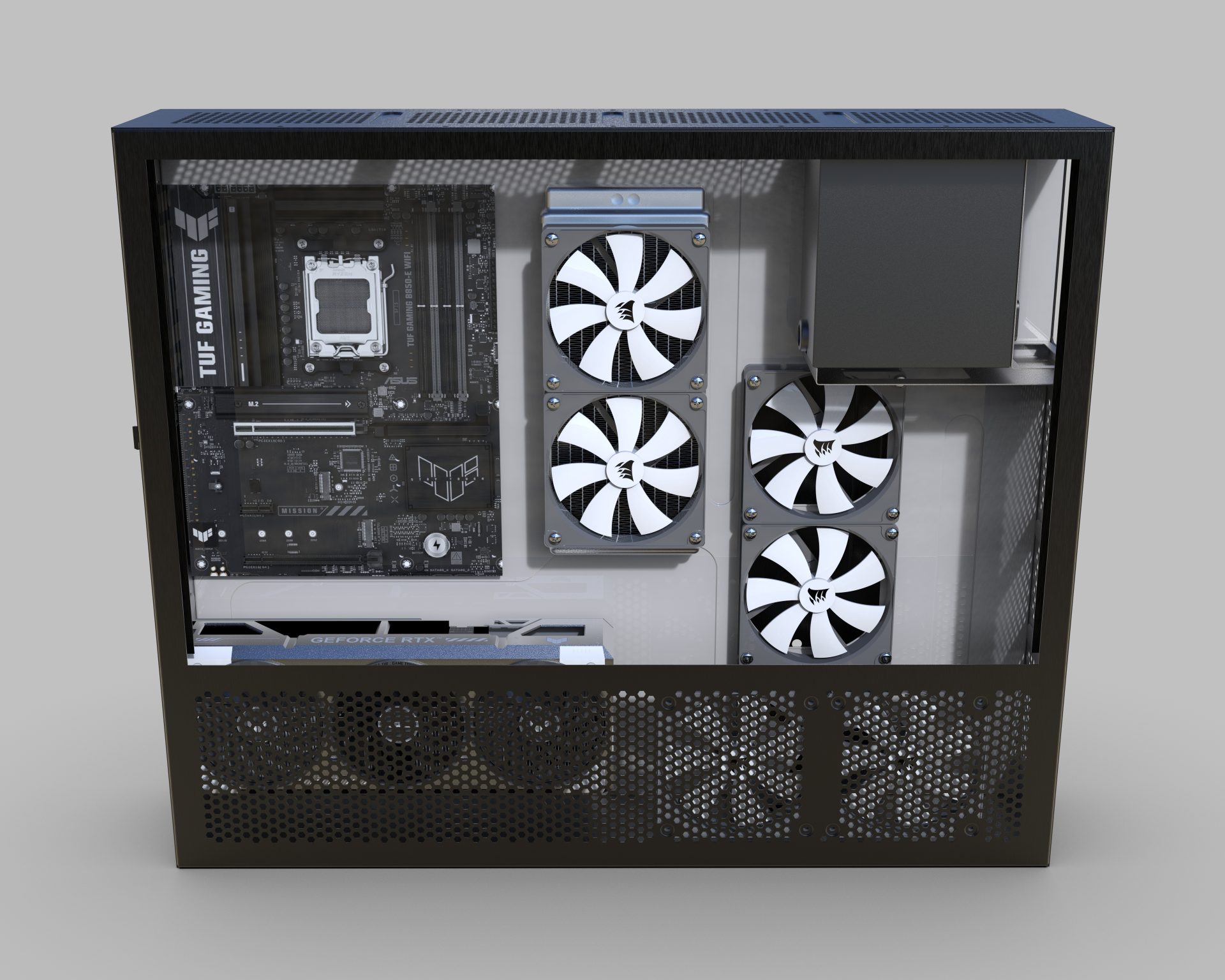

• Integrated Thermal & Cable Management – Layout designed with dedicated pathways for airflow and internal cable routing

The Design Process

1. Concept & DFM Foundation
   Establishing a minimalist aesthetic while designing for 22-gauge SPCC sheet metal fabrication.
2. Detailing & Reinforcement
   Engineering bend sequences, applying form tools for strength, and defining all tolerances.
3. Finish & Quality Specification
   Specifying the exact chemical pre-treatment and powder coating process for durability.
4. Final Documentation
   Compiling the complete drawing set and BOM for direct factory handoff.

The Outcome

A minimalist case that elevates a brand.

• Seamless Factory Launch – Complete technical package enabled immediate production with zero revision cycles.
• Premium Product Feel – Strategic reinforcements and a flawless finish created a high-perceived-value enclosure.
• Protected Core Components – Optimized thermal and cable management ensured reliable performance for end-users.
